Air-Powered Pumps

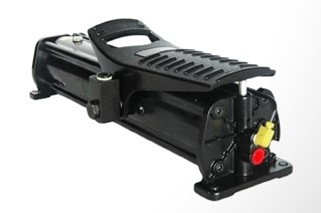

Featured Image for Air-Powered STA-40 Series Pumps

Air-Powered STA-40 Series Pumps

This versatile air pump can safely deliver up to 10,000 psi of hydraulic pressure for a variety of aplications. When an air supply is available at your job site, it is quick and easy to use this air pump. using air power reduces the operator fatigue that can occur when using a manual hydraulic pump.

Features:

  • Portable to any job site having compressed air.
  • Superior reliability – Designed using minimal parts for maximum reliability.
  • Balance of Toughness and weight – A lightweight, compact design made of durable heavy-duty anodized aluminum provides toughness while reducing overall weight.
  • All weather performance – Seals and other components selected for best performance over a temperature range of 135F to 250F.
  • Utilizes a 360 degree swivel hose connector for increased flexibility to work in any position.
  • Exclusive “air-thrust” design rapidly takes up slack, putting the cylinder rod or tool in its work position very quickly.
Featured Image for Air-Powered STA-10x Series Pumps

Air-Powered STA-10x Series Pumps

The STA-10x models are basic, foot-activated air pumps with different reservoir sizes

These pumps are made of lightweight, durable heavy-duty anodized aluminum to provide a balance of toughness while reducing overall weight. They operate in all types of weather over a wide temperature range. They can safely deliver up to 10,000 psi of hydraulic pressure for a variety of applications. These models provide excellent oil flow delivery resulting in more work in less time. They utilize a two-stage release for fast ram return while keeping hydraulic shock to a minimum. These models come with a variety of different size reservoirs with a standard reservoir size of 98 cubic inch and options of up to 454 cubic inches.

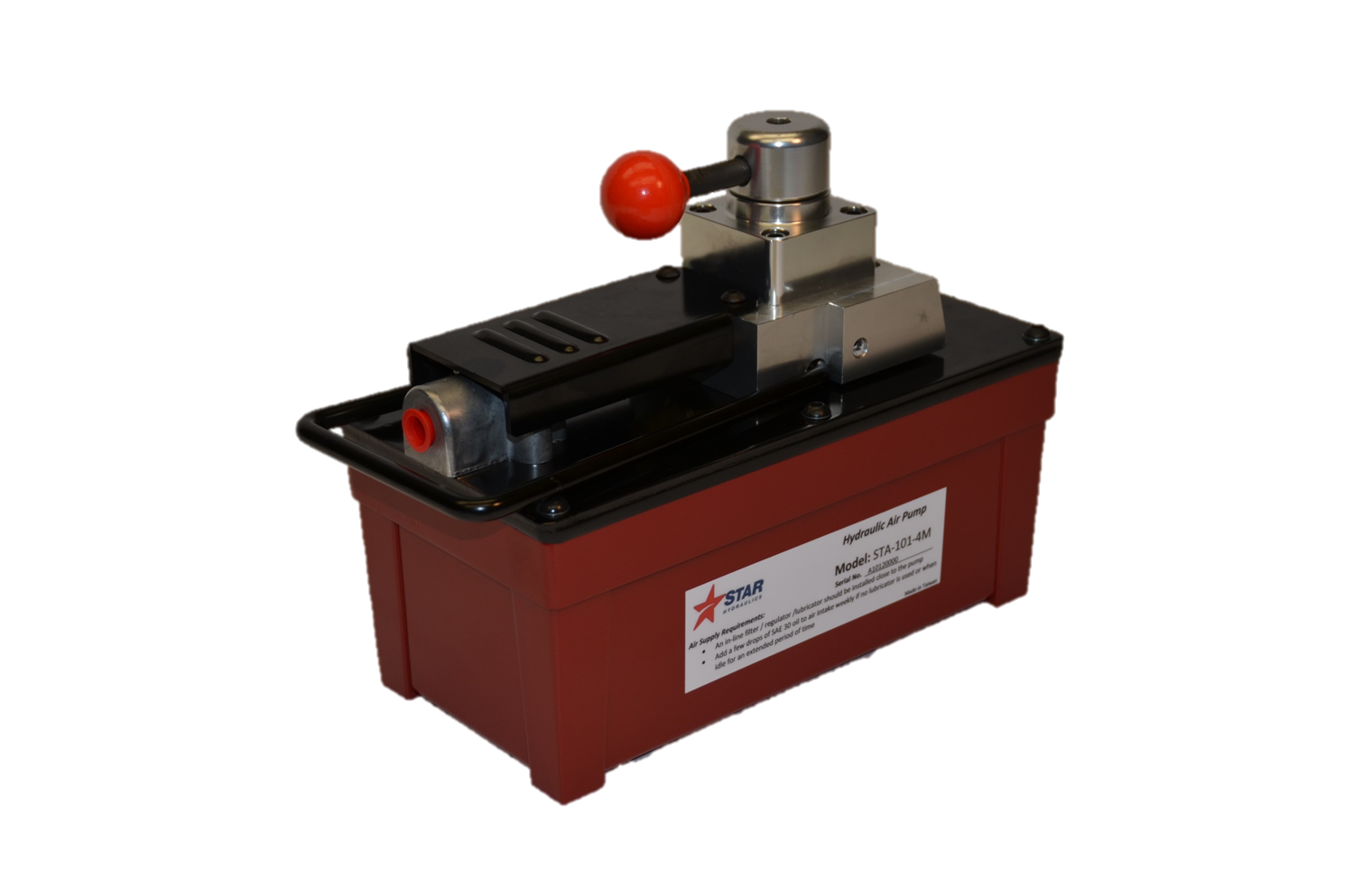

Featured Image for Air-Powered STA-10x-4M Series Pumps

Air-Powered STA-10x-4M Series Pumps

The STA-10x-4M models use a 4-way valve in order to operate double-acting cylinders. The 4 way valve is used to operate the air pressure. The standard model, STA-101-4M has an anodized aluminum, 98 cu. in. reservoir. Other sizes of both aluminum and plastic reservoirs are available.

These pumps are made of lightweight, durable heavy-duty anodized aluminum to provide toughness while reducing overall weight. They operate in all types of weather over a wide temperature range. They can safely deliver up to 10,000 psi of hydraulic pressure for a variety of applications. These models provide excellent oil delivery resulting in more work in less time. They utilize a two-stage release for fast ram return while keeping hydraulic shock to a minimum.
