HF500 custom

SKU: HF500 custom Category:

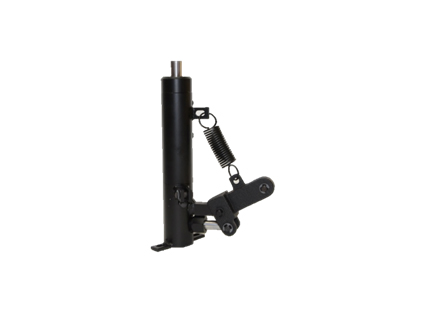

In a single, compact lightweight unit, Star has combined an efficient pump and durable cylinder that produces one ton lifting capacity. The model HF500 Jack is easy to operate-takes only 4 1/2 pounds of pedal force per 100 pounds of load, and it is fast acting. For each stroke of the folding pump foot pedal, the cylinder piston rod moves 1/2 inch. The unit has a built-in release pedal for rapid lowering, and the Jack is equipped with lugs that make it easy to mount. Star provides several standard stroke lengths, but custom lengths are also available subject to the limitations shown in the specification table below.

Features:

  • Full 2000 pound lifting capacity
  • Easily operated pedal type pump
  • Hard chrome plated piston rod and pump piston
  • Release pedal for rapid lowering
  • Folding foot pedal
  • Top-of-stroke Relief Valve to prevent over-extension
  • Optional overload relief valve

Typical Custom Modifications:

  • Custom stroke length
  • Compact pedal
  • Foot pedal tread plate
  • Rod thread type
  • Special paints available for food and medical applications
  • Paint color
  • Special mounting holes and slots
  • Special Piston materials
  • Soft seat release

Specifying Customization:
Star’s customer service and engineering personnel will assist you with customization that is required. Whether we receive your drawing and specification or provide one to you, we strive to meet your special requirements as quickly and efficiently as possible.

Stroke LengthMaximum - 36, Minimum - 4 inch
Total Length RetractedMaximum - 43, Minimum - 11 in
Total Length ExtendedMaximum - 79, Minimum - 15 in
Load Capacity Guided2000 lb
List Price NoteLoad capacity unguided is an estimate assuming unguided load and some side loading.

Load capacity unguided is an estimate assuming unguided load and some side loading.
