Hydraulic Cylinders Tailored to Your Application

When standard cylinder designs fall short, Star Hydraulics engineers custom hydraulic cylinders to meet the specific performance, fit, and operating demands of your application.

With decades of cylinder design experience, Star can tailor mounting arrangements, rod configurations, materials, seals, and integrated features to suit your application.

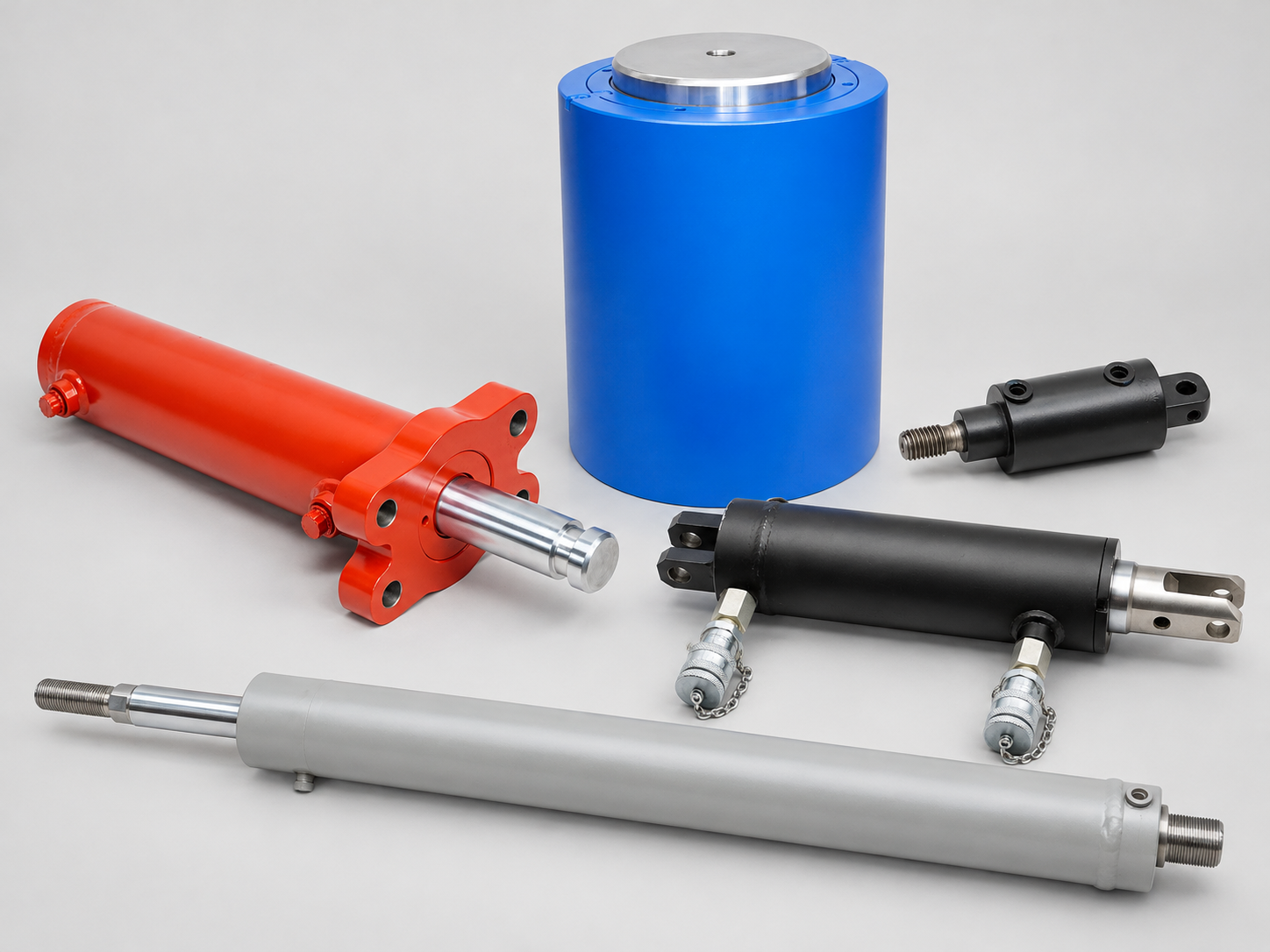

Star Hydraulics Custom Hydraulic Cylinders

Custom Cylinder Capabilities

Up to 15,000 PSI

Maximum Pressure

Up to 1,500 Tons

Load Capacity

Up to 24 in.

Maximum Bore Capacity

Up to 20 ft.

Maximum Stroke Capacity

Cylinder bore and stroke capabilities depend on application requirements. Maximum bore and stroke dimensions may not be available in the same configuration.

Customization & Configuration Options

Cylinder Configuration

  • Single- or Double-Acting
  • Telescopic Designs

Rod Configuration

  • Solid Rod
  • Hole-Thru Rod
  • Double Rod End

Construction & Features

  • Stroke Indicating Devices Available
  • Custom Valving Available

Body Materials

  • Steel
  • Brass
  • Aluminum
  • Cast Iron
  • Cast Steel
  • Bronze
  • Stainless Steel

Seal Options

Seal Types
  • O-Rings
  • T-Seals
  • U-Cups
  • Vee Rings
  • Piston Rings
Seal Materials
  • Buna
  • Viton
  • Teflon
  • Urethane
  • Cast Iron

Environmental Options

Material and seal options support applications involving corrosive environments, extreme temperatures, and specialized hydraulic fluids.

Download the cylinder overview and request form, complete your application details, and send it to sales@starhyd.com to begin the review and quoting process.

Request a Custom Cylinder
